BMW M2 CS RACING*.

BMW M2 CS RACING*.

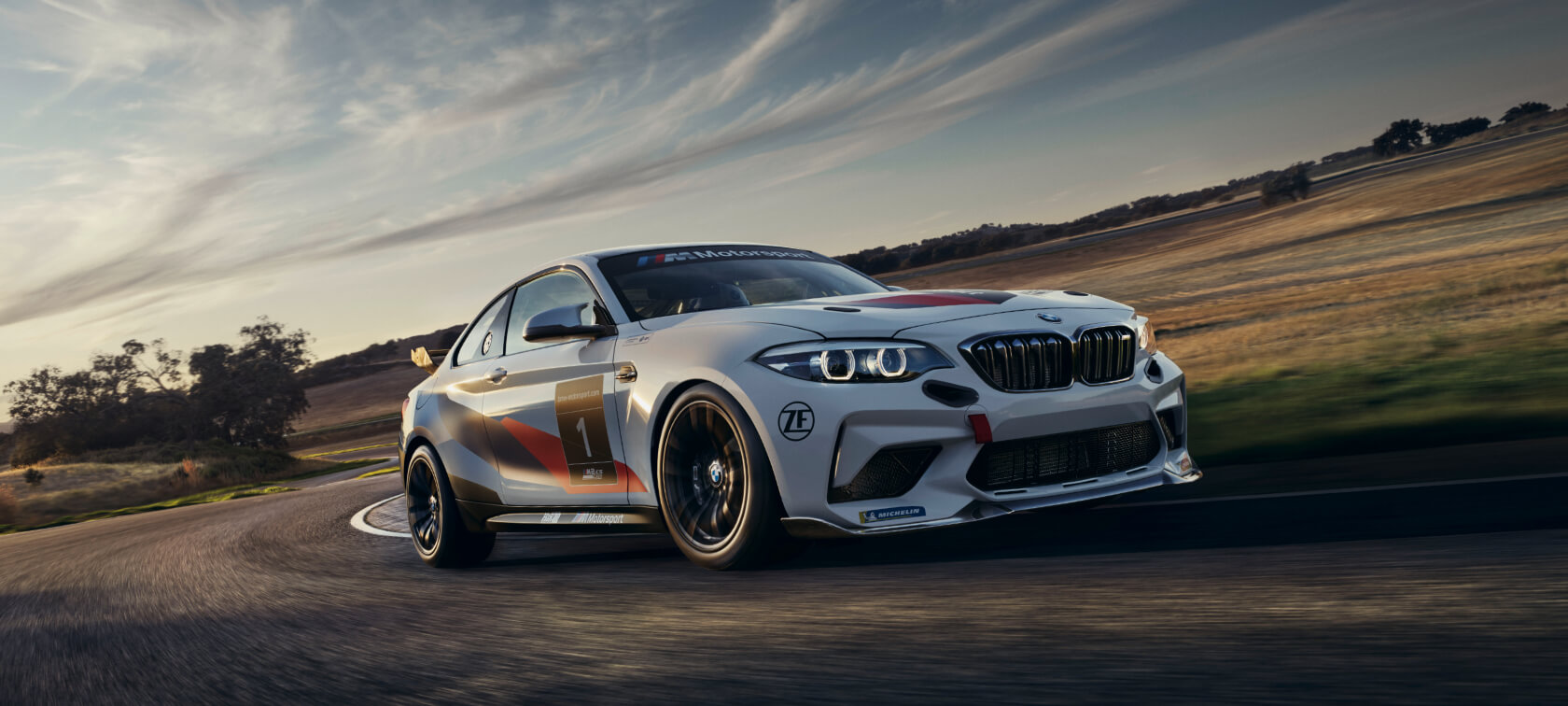

With the BMW M2 CS Racing*, BMW M Motorsport continues its tradition of close-to-production customer racing vehicles. The BMW M2 CS Racing is convincing with impressive driving performance and offers ambitious teams and drivers an affordable gateway to racing. The car has its main stomping grounds in the VLN Endurance Championship Nürburgring and TC America, as well as various platforms around the world.

2 March 2023

ALL HIGHLIGHTS AT A GLANCE.

THE HIGHLIGHTS OF THE BMW M2 CS RACING.
WHEELS AND TYRES.
SAFETY.
BRAKES.
CENTRE CONSOLE.
RACING SEAT IN LINE WITH FIA STANDARDS.
STEERING COLUMN WITH BMW MOTORSPORT STEERING WHEEL AND AIM MXG 1.2 MOTORSPORT DISPLAY.
ENGINE.
AERODYNAMICS.
THE HIGHLIGHTS OF THE BMW M2 CS RACING.

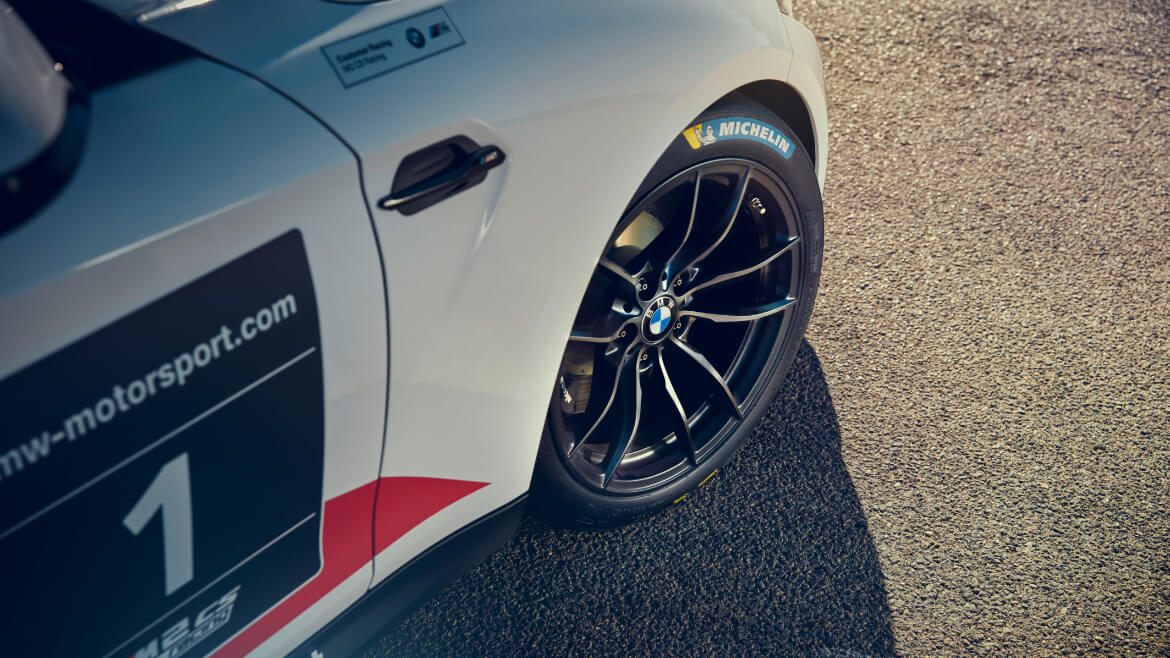

WHEELS AND TYRES.

The BMW M2 CS Racing has 10.5x18 inch aluminium rims in BMW Design 513M in matt black, and is delivered with the Michelin slick tyres 27/65-18 S9L.

SAFETY.

The BMW M2 CS comes with the latest safety features in line with FIA standards, the central components of which are the FIA fire extinguisher and the FT3 safety fuel tank. The chassis is kitted out with a DMSB-certified welded roll cage from BMW Motorsport.

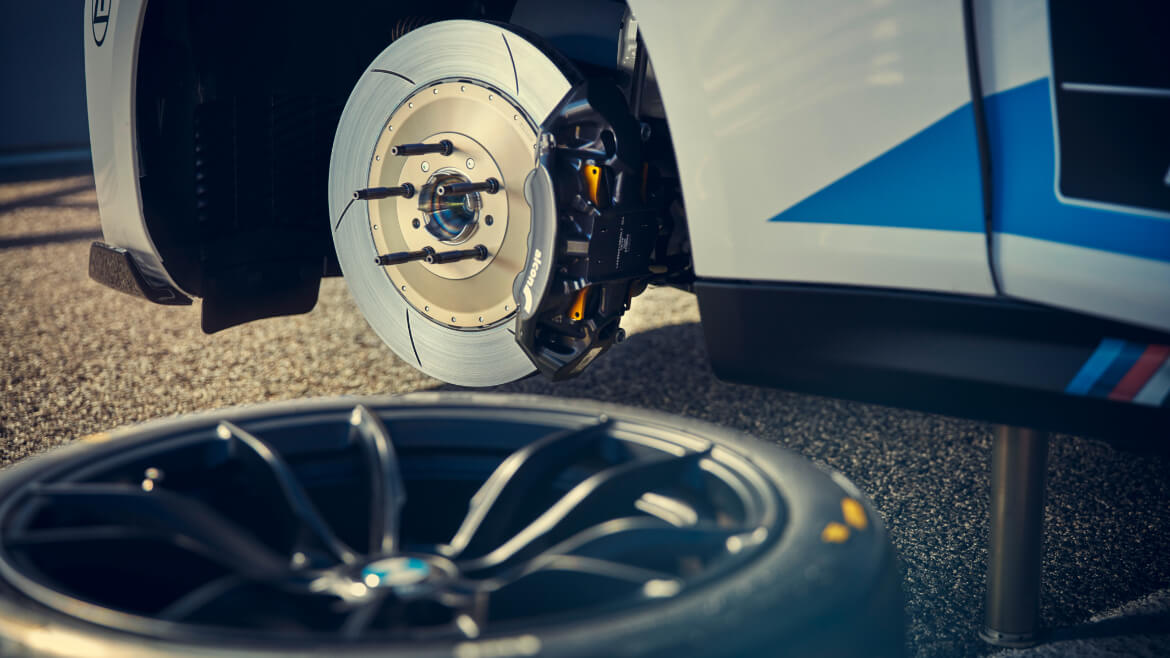

BRAKES.

The BMW M2 CS Racing has a front-axle brake with 6-piston fixed calliper and a rear-axle brake with 4-piston fixed calliper, with a brake disk diameter of 380 mm front and rear. It is also fitted with an additional brake air cooling system.

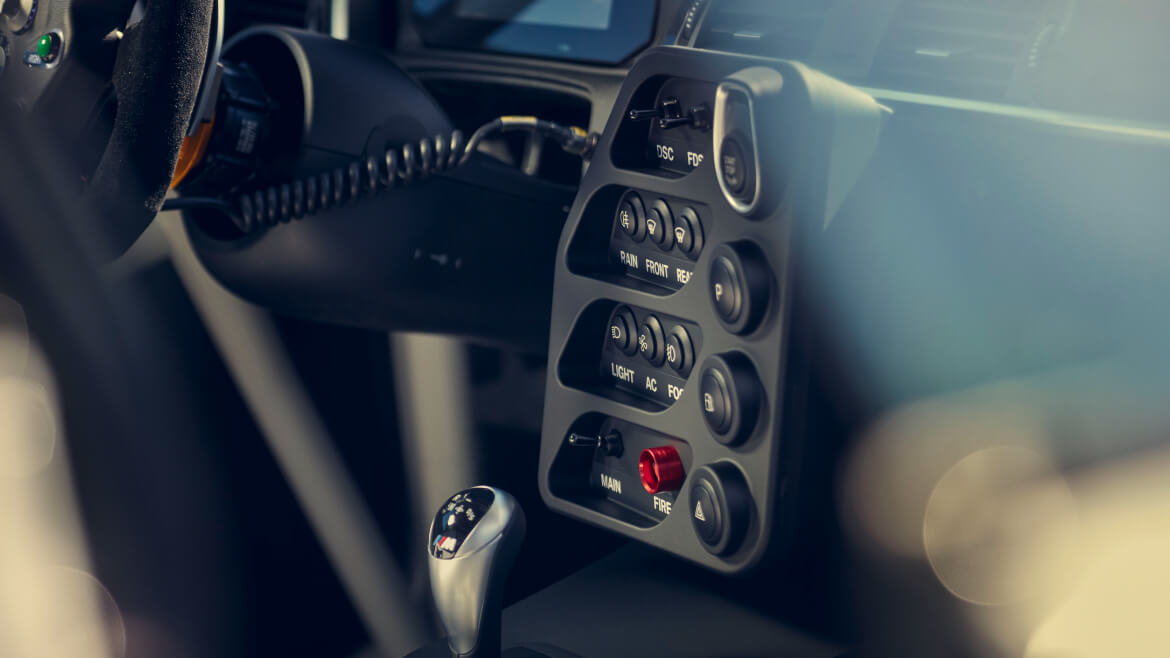

CENTRE CONSOLE.

The user-friendly illuminated switch panel on the centre console makes it easy to use various functions and assistance systems such as the light, air conditioning and the DSC driving stability control.

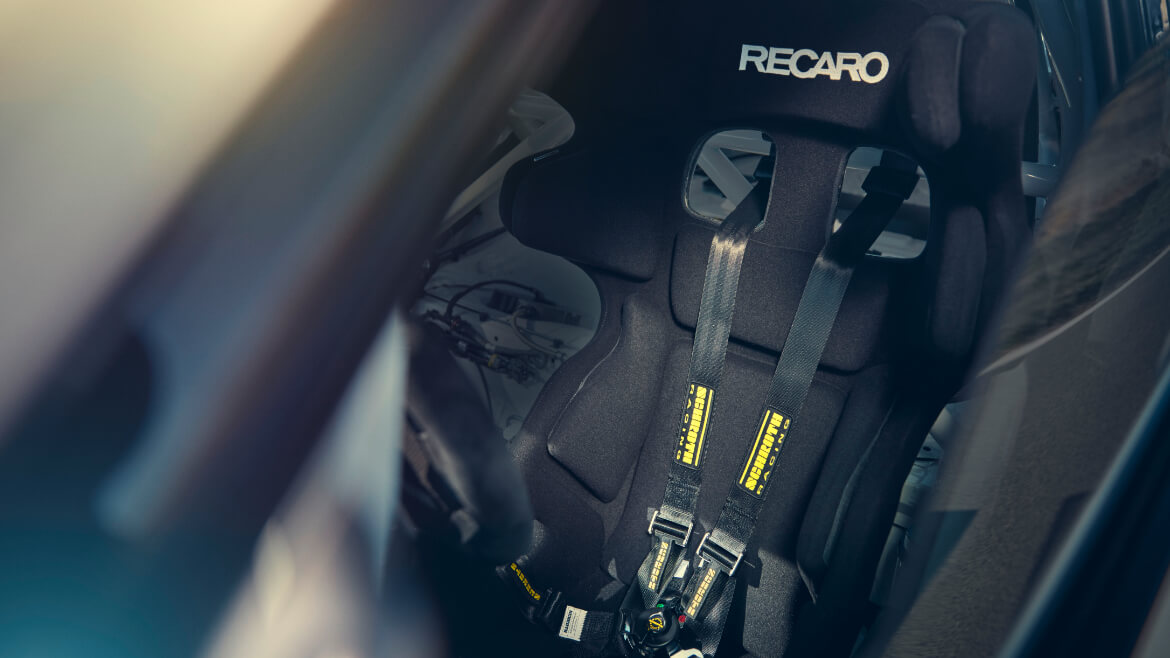

RACING SEAT IN LINE WITH FIA STANDARDS.

The race seat, adjustable in line with FIA standards, is kitted out with a six-point safety harness (FIA 8853-2016). The BMW M2 CS Racing with 365 hp comes with a Sabelt Taurus XL (FIA 8855-1999) as standard. An optional extra, as shown in the image, is a Recaro P 1300 GT race seat (FIA 8862-2009). The 450 hp version of the M2 CS Racing comes with the Recaro P 1300 GT as standard.

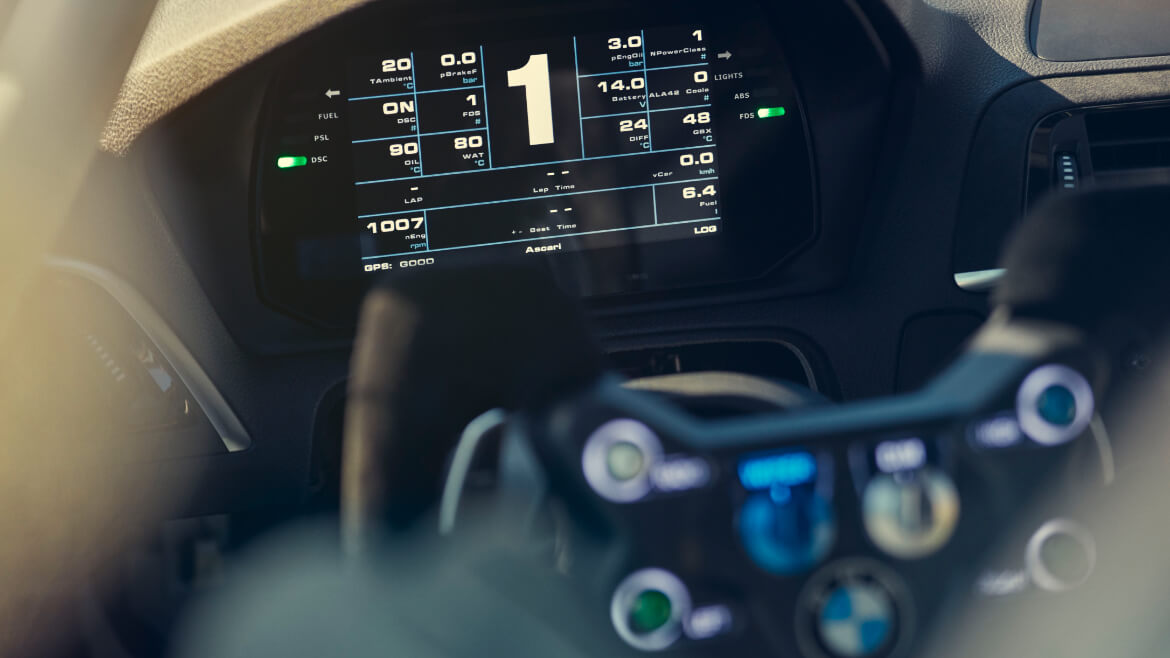

STEERING COLUMN WITH BMW MOTORSPORT STEERING WHEEL AND AIM MXG 1.2 MOTORSPORT DISPLAY.

The BMW M2 CS Racing has an adjustable steering column with removable BMW Motorsport steering wheel. An AIM MXG 1.2 Motorsport Display with logger function and colour display is available for recording lap times and monitoring the most important functional data.

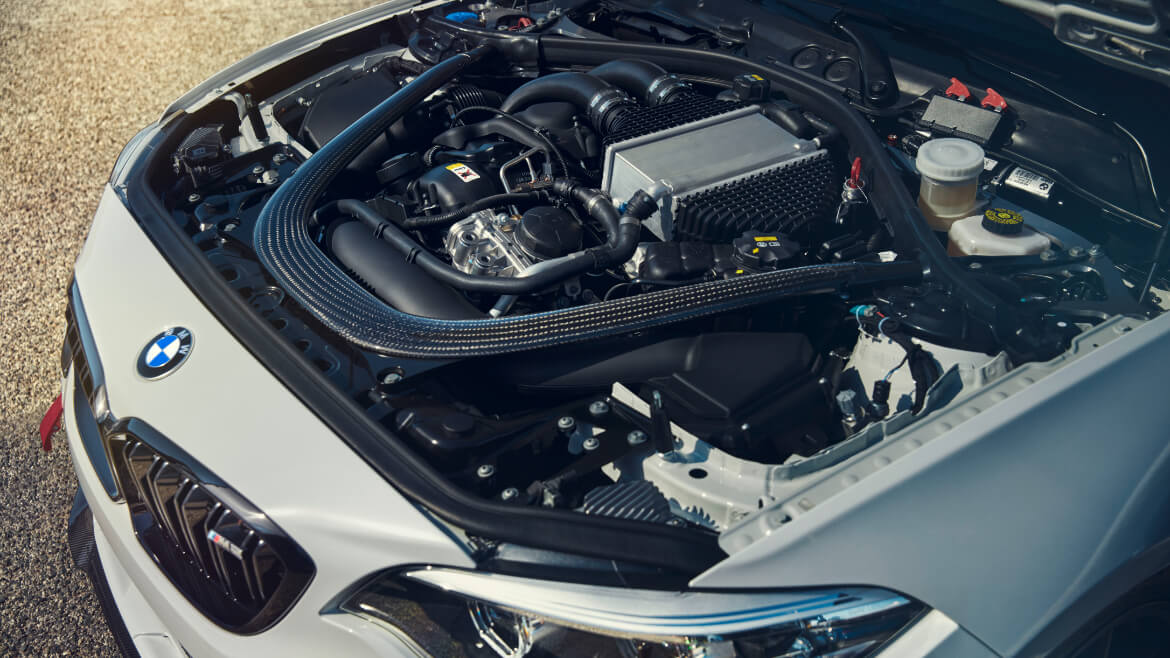

ENGINE

The new BMW M Motorsport car is powered by an S55 inline six-cylinder engine with BMW M TwinPower Turbo technology, which, with a capacity of 2,979 cc, reaches between 280 and 365 hp in the basic version, and 450 hp in the maximum configuration. As in the BMW M4 GT4, the engine is controlled using power sticks, which enable various performance levels to be programmed and called up, depending on the balance of performance specified. The maximum torque of 550 Nm is transferred by a 7-speed dual clutch transmission that was applied with specialised motorsport software.

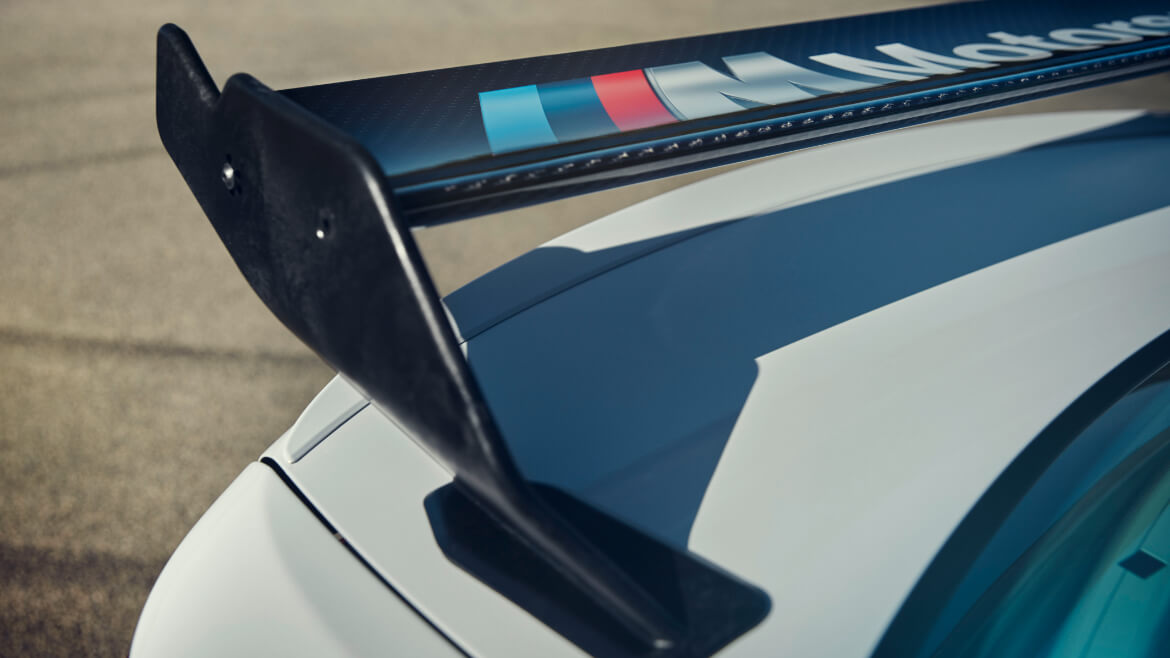

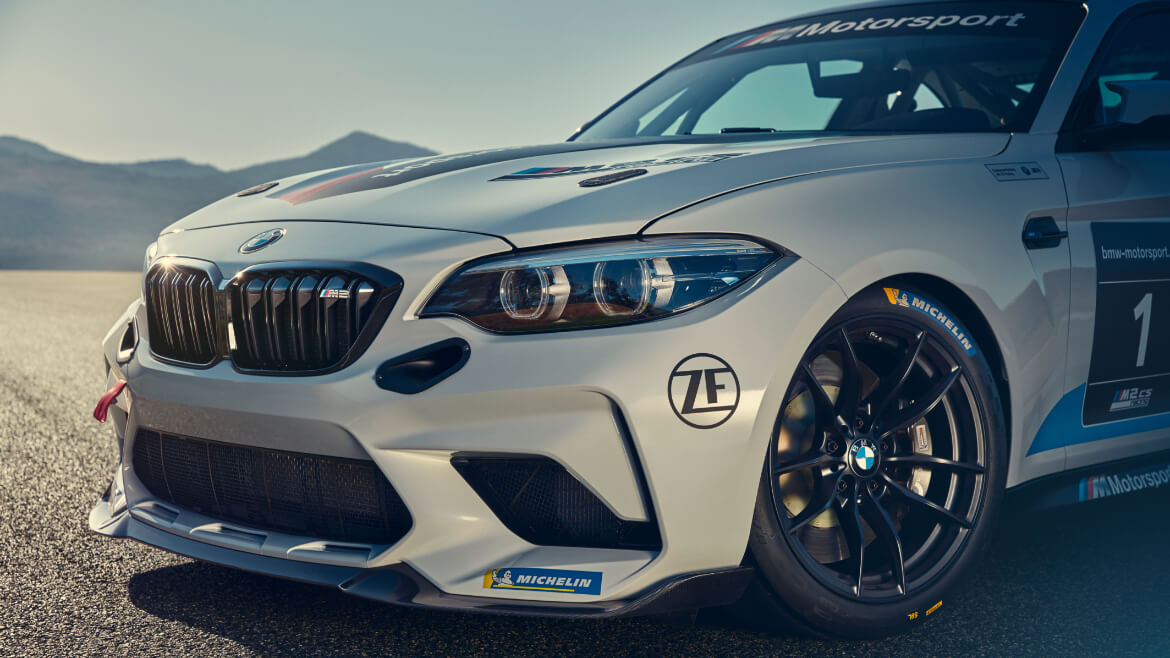

AERODYNAMICS.

Optimum downforce comes from a front splitter that was derived from the special edition BMW M2 CS, and an adjustable rear wing, specific to motorsport.

1

TECHNICAL DATA OF THE BMW M2 CS RACING.

Dimensions.

Length:    4461 mm

Width without mirrors:    1854 mm

Width with mirrors:    1990 mm

Wheelbase:    2693 mm

Front track width:    1568 mm

Rear track width:    1608 mm

Engine.

Type:    Six-cylinder in-line, four valves

Technology:    M TwinPower turbo technology, direct injection, Valvetronic

Capacity:    2,979 cc

Number of cylinders:    6

Performance:    Basic version: from 280 to 365 hp; 450 hp version: from 280 to 450 hp, configurable using power sticks, depending on balance of performance (BoP)

Engine control:    Production engine electronics – performance customisable via power stick depending on stipulated balance of performance (BoP)

Exhaust system:    Motorsport-specific exhaust system

Bore:    84.0 mm

Hub:    89.6 mm

Transmission.

  • Seven-speed dual-clutch gearbox with motorsport software
  • Drexler mechanical limited slip differential with separate cooling
  • Specially-manufactured pinion shafts with wheel bearings adapted for motorsport (rear axle)

Assistance Systems.

  • Specially-adapted BMW M Motorsport stability systems (DSC/ABS)

Cockpit.

  • Standard air conditioning system
  • Basic version: adjustable Sabelt Taurus XL seat (FIA 8855-1999) with M2 CS Racing embroidery, 450 hp version: adjustable Recaro P 1300 GT seat (FIA 8862-2009) with M2 CS Racing embroidery
  • Schroth six-point safety harness (FIA 8853-2016)AIM MXG 1.2 motorsport dash logger with colour display
  • Centre console with illuminated control panel
  • Adjustable steering column with removable BMW Motorsport steering wheel, with control buttons and shift paddles
  • Extra-large rear-view mirrors for improved vision to rear
  • Rear-view mirror can be adjusted electronically
  • Heated windscreen
  • Fire-extinguishing system
  • Optional:
    - Race taxi seat
    - Preparation for drink system

Body.

  • Chassis with DMSB-approved, welded safety roll cage (in accordance with FIA regulations), manufactured by BMW M Motorsport
  • CFC roof, similar to BMW M2 CS
  • Rear side windows made from Makrolon® with tank filler neck
  • Front splitter
  • Motorsport rear wing, adjustable
  • Air jack system
  • Quick-release fasteners for bonnet and tailgate
  • Motorsport cable harness
  • Towing eyes at front and rear, acc. regulations

Tank.

  • FT3 safety fuel tank
  • Capacity: 84 litres
  • Fuelling possible from both sides of the car
  • Vent line secured by roll valve
  • Optional: Endurance tank with a capacity of 120 litres (available as of the end of 2020)

Chassis.

  • Motorsport specific steering arm
  • Adjustable motorsport anti-roll bars at front and rear
  • Specially-adapted motorsport shock absorbers at front and rear
  • Springs available with three spring rates for front and rear axle

* Model no longer available to order
